Images
This contains SEM and TEM images from the Picolab

Bitmap Image


Microsoft Photo Editor 3.0 Photo

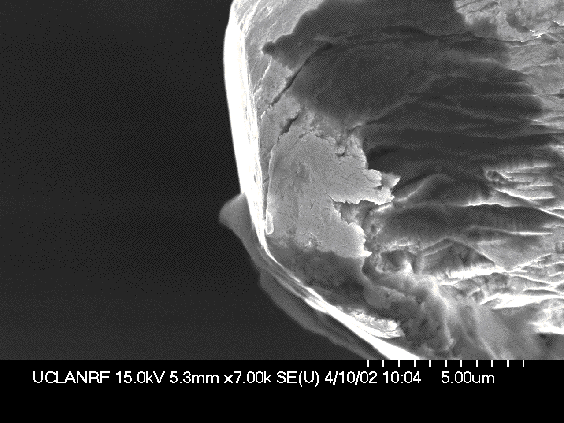

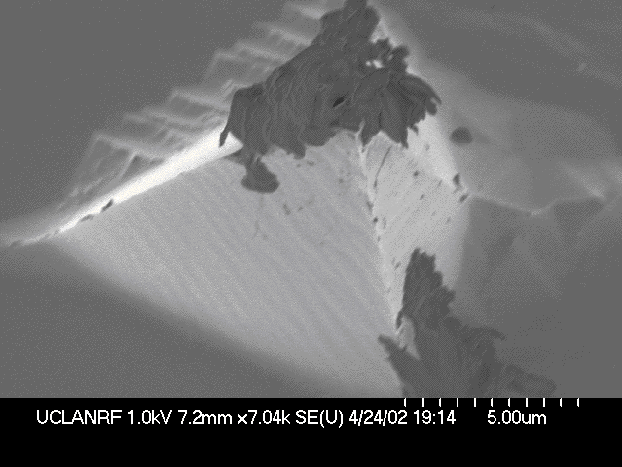

This is a dirty AFM tip.


Bitmap Image


Microsoft Photo Editor 3.0 Photo

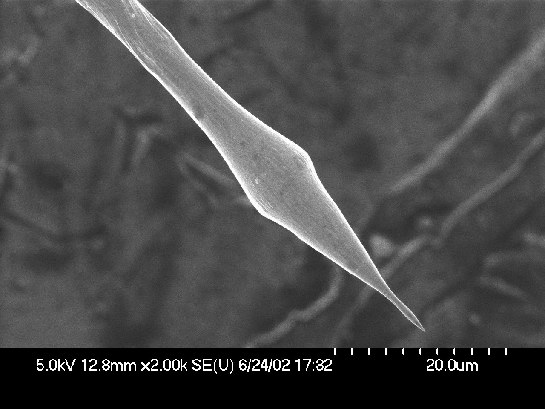

This is an up-close-and-personal look at a used Tungsten STM tip

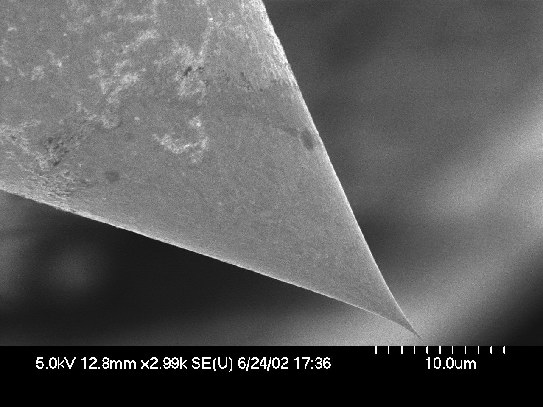

STM tip ready for use in the LT-STM

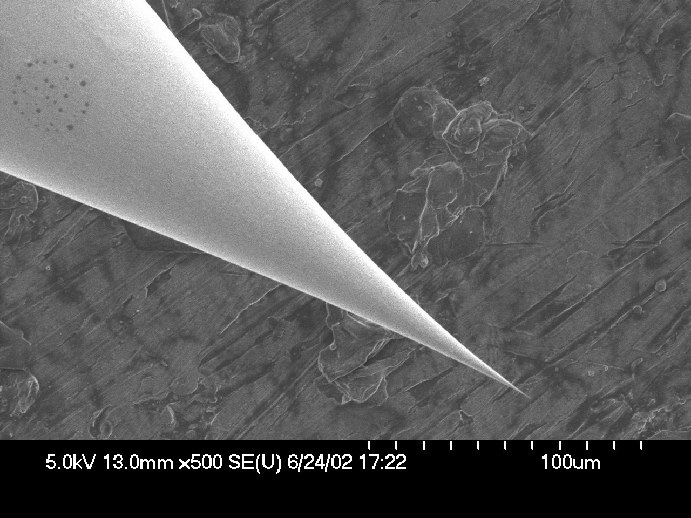

Our new 'arrow head' STM tip, they are very popular in Paris.


Bitmap Image



Picture taken with a Nikon Coolpics through a stereo microscope (40x)

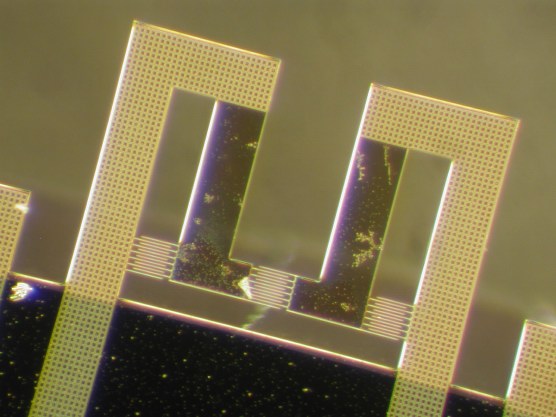

Resolution of the cool pics is good enough to judge the condition of the fingers (and see some dirt)

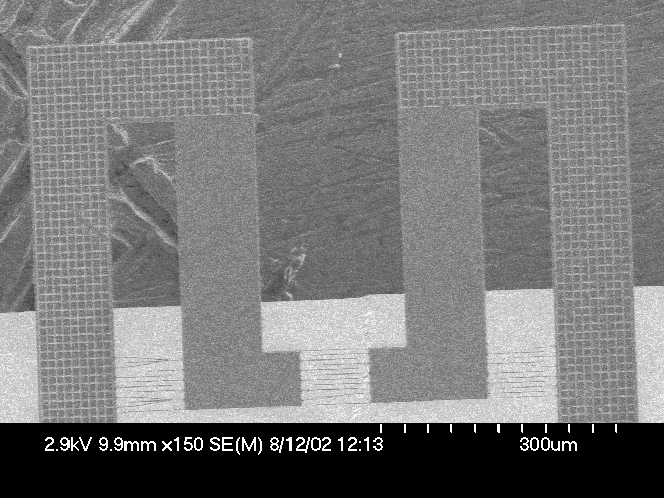

SEM image of interdigitated cantilevers, notice some of the fingers are stuck

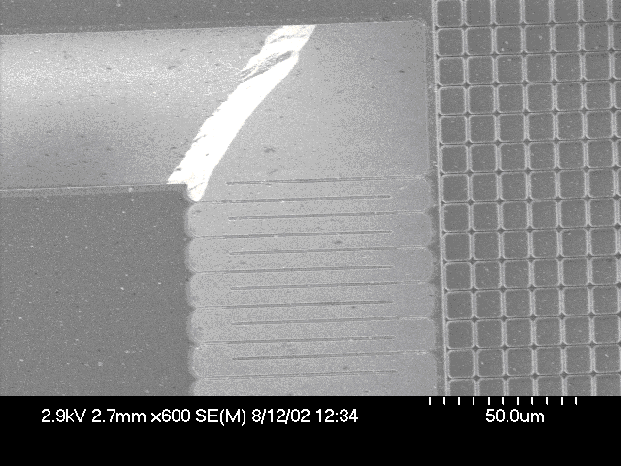

An closer look at a set of interdigitated cantilevers
